– The SB-09R features a redesigned exterior, larger windows, and new LED lighting for dramatically improved internal visibility.
– The SB-09R performs automated changeovers by inputting size information into the 15-inch control panel. The optional bookblock/cover sheet size input interface allows for intuitive and simple job setups. New transparent covers can be removed and provide easy access to the inside for maintenance and cleaning.
– Maximum cycle speed is 4,000 cycles per hour. Multiple books can be stacked and cut together improving trimming productivity.
– The CABS system confi guration achieves single pass book production, while roll-fed smart binding options allow for automatic changeovers of variable thickness book production.
Differences Between SB-09R Models

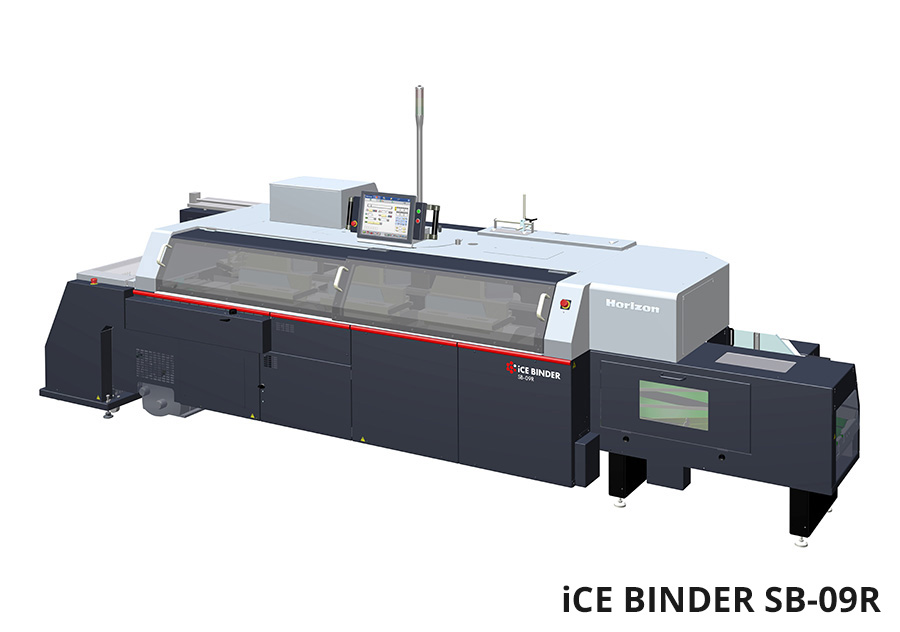

SB-09R: Roller-grip-style cover feeder with lower table.

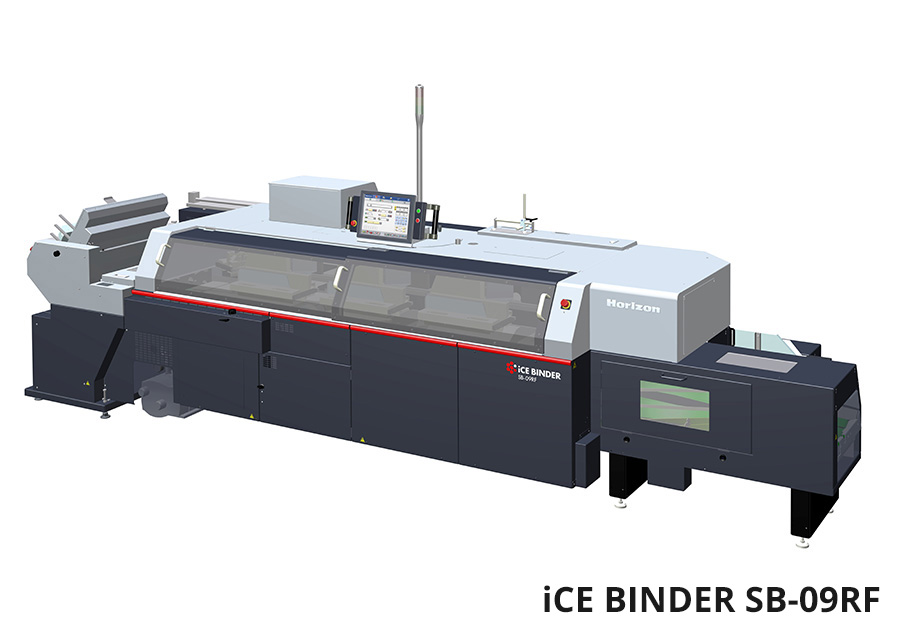

SB-09RF: Rotary-grip-style cover feeder with upper table.
| Model | iCE BINDER SB-09R/RF |
|---|---|
| Binding Type | Binding with milling, Binding without milling, Pad binding, and Partial gluing |
| Number of Carriage Clamps | 9, Clamp width is adjusted automatically |
| Book Block Size | Spine Length x Fore-edge Length Inline:Portrait Max. 330 x 250 mm or 12.9” x 9.8” Min. 148 x 105 mm or 5.9” x 4.2” Offline:Portrait Max. 400 x 280 mm or 15.7” x 11.0” Min. 148 x 105 mm or 5.9” x 4.2” Offline:Land Scape Max. 330 x 320 mm or 12.9” x 12.5” Min. 135 x 185 mm or 5.4” x 7.3” |
| Book Thickness | 1 to 45 mm or 0.04” to 1.77” (depending on conditions) |
| Cover Size | Length x Width Max. 400 x 660 mm or 15.7” x 25.9” Min. 135 x 220 mm or 5.4” x 8.7” |
| Cover Weight Range | Normal Paper : 82 to 302 gsm Coated Paper : 105 to 348 gsm SB-09R : Flap covers cannot be fed. SB-09RF : Flap covers can be fed. |
| Cover Stack Height | Max. 130 mm or 5.1” |
| Production Speed | Max. 4,000 books per hour |
