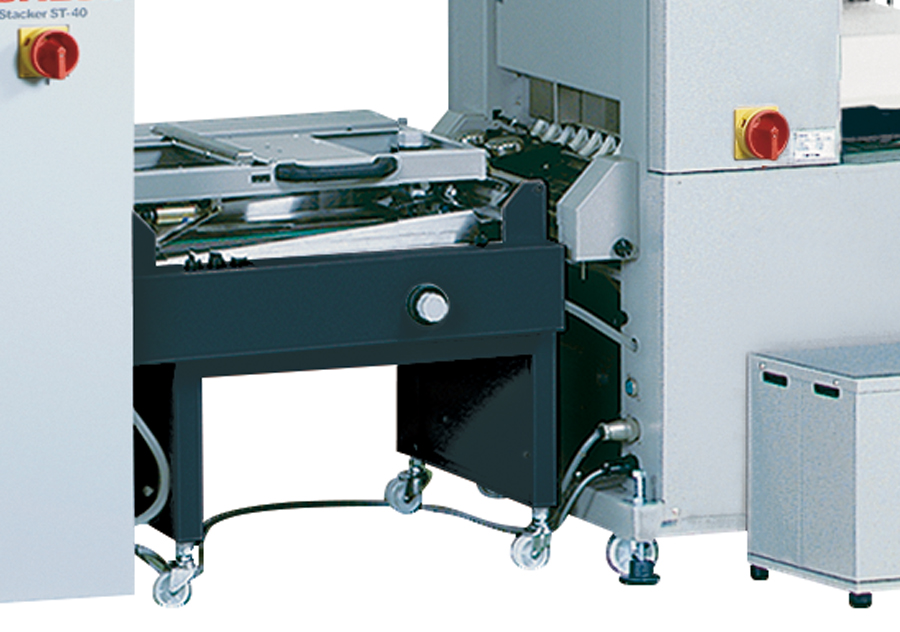

Sub Accumulator SA-40

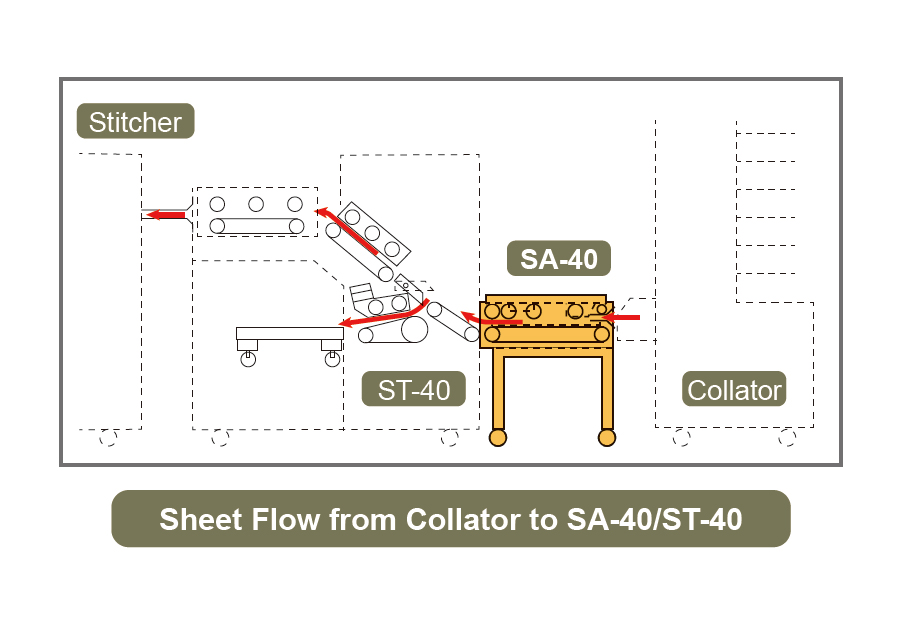

The SA-40 sub accumulator temporarily accumulates the sheets delivered from the collator and stabilizes the sheet jog for the stitcher for quality bookletmaking. Also the SA- 40 improves the sheet jog for the ST-40 bypass stacker.

– Using the accumulating mode on the SA-40, every misfed sheets can be ejected.

– Sheet delivery angle, bulging nose, assist air, stopper plate, and jog waiting time are adjustable for running the various type of paper.

Specifications

Model	SA-40
Sheet Size	Width x Length Accumulate: Max. 350 x 500 mm / 13.78” x 19.69 Min. 140 x 204 mm / 5.52” x 8.04” Pass Through: Max. 350 x 500 mm / 13.78” x 19.69” Min. 120 x 148 mm / 4.73” x 5.83”
Sheet Weight Range	It depends on the connected collator specifications.
Max. Thickness	3 mm / 0.11”
Voltage / Frequency	Belt driving power is transmitted from the Stacker ST-40.
